★ New Processing Architecture
Featuring Intel’s latest Sapphire Rapids series processors, providing users with higher performance for all applications. Compared to previous generations, this processor supports more CPU cores and PCIE 5.0, greatly improving system performance. More and faster UPI buses between processors dramatically enhance CPU collaboration efficiency.
★ Powerful Processing Performance
The processor integrates a 16-channel memory controller and supports up to 4800MHz of DDR5 memory. Each CPU can be equipped with 8 memory slots, totaling 16 memory slots, with memory capacity expandable up to 4TB, providing flexible and powerful memory configuration options.
★ Expandability
3 PCle 5.0×16 (LP) slots provide expansion interfaces for network cards, IB cards and other expansion requirements, applicable to various scenarios such as high-performance computing, cloud computing, hyperconvergence, virtualization, and better meet the complex application scenarios and requirements of customers.
★ High Density

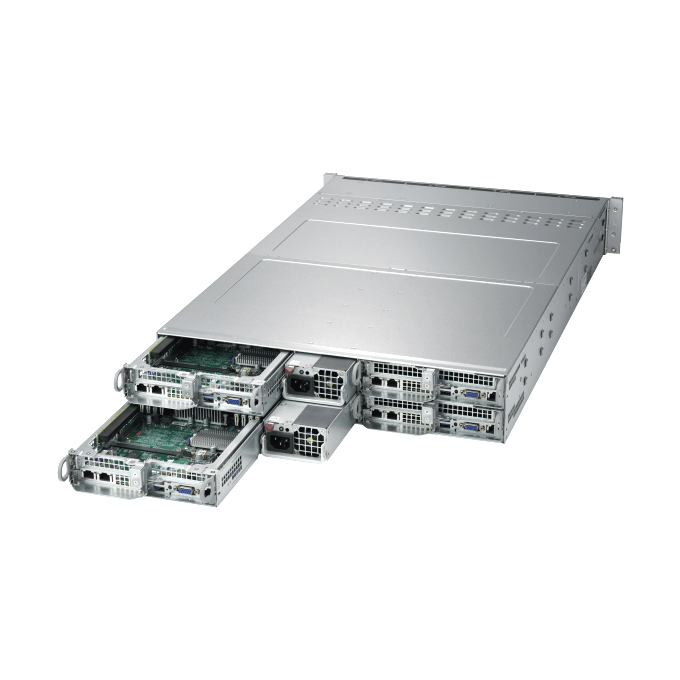

Four independent nodes are integrated in a 2U space, combining high performance, high density, and high reliability into one.
Application Fields: Suitable for industries such as the internet, education, finance, scientific research, and medicine, especially applicable to cloud computing hyperconvergence, web-based applications, and high-performance computing applications.
| Item | Technical Specifications |
| Form Factor | 2U rack-mounted server with four independent computing nodes |
| Processor | 2x Intel Sapphire Rapids Xeon Scalable series processors, air-cooled heat dissipation can support CPUs up to 205W, and liquid-cooled heat dissipation can support CPUs up to 300W |
| Memory | 16 memory slots for DDR5 memory, 16 channels, with a maximum speed of 4800MHz and support for up to 4TB of memory |
| RAID | Can be equipped with AOC-SMG3-2M2-B for hardware RAID with 2 M.2 drives. Depending on actual needs, there are models that support SATA disk through HNTR, models that come with a 3808 subcard HNC8R, and models that come standard with a 3908 card HNC9R (Note: Models with a built-in 3908 card will occupy a standard PCIE SLOT, while the 3808 model does not occupy a standard PCIE slot, and the disk-through models only support SATA hard disks). |

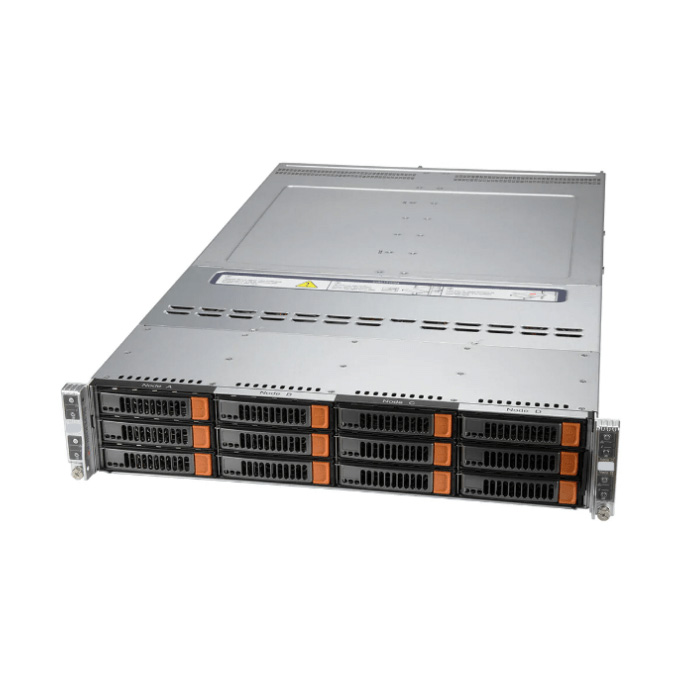

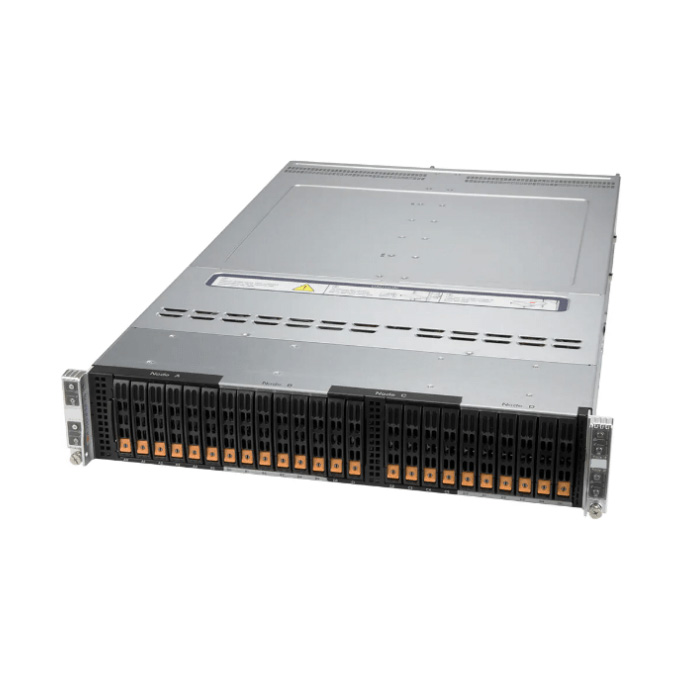

| Hard Disk | 6 2.5-inch hot-swappable NVMe/SATA/SAS hard disks or 3 3.5-inch hot-swappable NVMe/SATA/SAS hard disks |
| Expansion | Supports up to 3 PCIe 5.0 expansion slots, with 2 PCIe 5.0 X16 and 1 AIOM (PCIe 5.0) |
| Management | Aspeed AST2600 BMC/HW RoT 2.0/TPM 2.0 |
| Networking | Optional four 10G Ethernet ports, dual 10G Ethernet ports, four 40G optical ports, dual 25G optical ports, dual 10G Ethernet ports plus dual 25G optical ports, or dual 100G optical ports. PCIe 5.0 supports up to 400G network. |
| Power Supply | Supports 3000W titanium-grade (1+1) redundant power supply with C20-C21 power cables |
| Remarks | This document is for reference only. Specific configurations are subject to negotiation. |
