Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Key Features
- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
- 2x 10 GbE onboard via Broadcom BCM57416
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 24x 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear 2.5″ SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom® 3908
| Item | Technical Specifications |
|---|---|

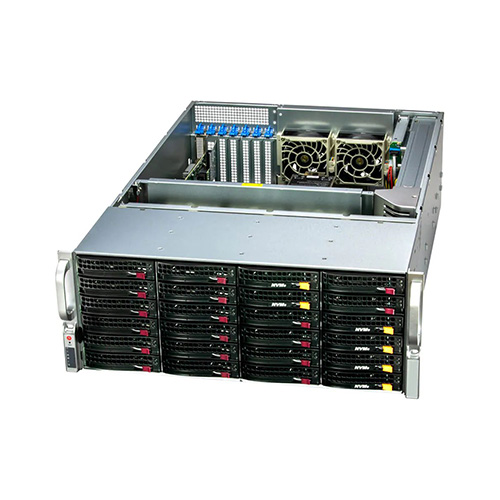

| Form Factor | 4U Rackmount |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Input / Output | LAN 1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1) USB 4 USB 3.0 port(s) (rear) Video 1 VGA port(s) (Rear) Serial 1 COM port(s) (Rear) TPM 1 TPM header |
| PCI-Express | Default 4 PCIe 5.0 x16 (in x16) FHHL slot(s) 2 PCIe 5.0 x8 (in x8) FH/10.5″L slot(s) |
| Drive Bays | Default: Total 26 bay(s)24 front hot-swap 3.5″ SAS/SATA drive bay(s) 2 rear hot-swap 2.5″ SATA drive bay(s) Option A: Total 6 bay(s)6 front hot-swap 3.5″ NVMe* drive bay(s) |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies |
